ED-10000 Long Queue Flight Type Dishwasher

Line type dishwasher, modular Smart Modular design, powerful, easy to different needs of different customers;Customers can according to their own requirements, the actual size of the kitchen dishwasher for customization:

* Line type dishwasher, modular Smart Modular design, powerful, easy to different needs of different customers;

* Customers can according to their own requirements, the actual size of the kitchen dishwasher for customization:

* The heater power can be selected according to different water temperature;

* Dryer module can wash dishes material flexibility;

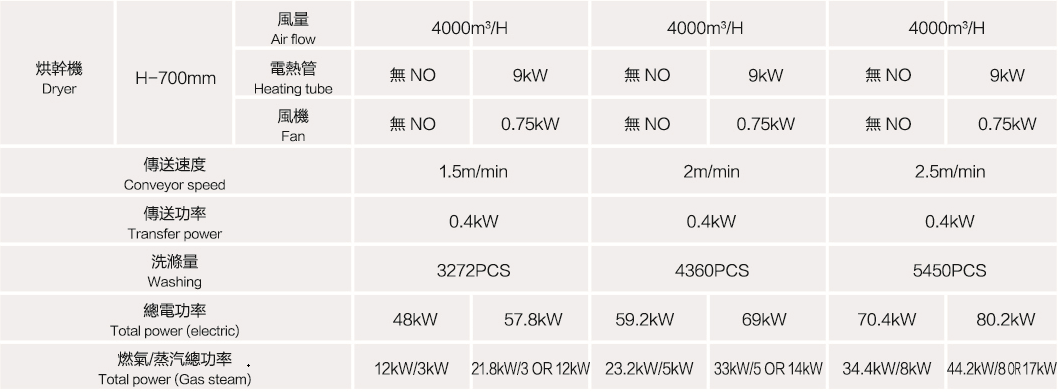

* The amount of washing table with 18 inch snack plate as the reference amount

* Inlet diameter: 6 points (20mm);

* Drain diameter: 2 inches (50mm);


* Water pressure: 1.055Kg/m2 ~ 1.76Kg/m2, preferably 1.4Ka/m2.over 1.76Kg/m2 valve must be installed (provided by other companies);

* Water temperature:10-50℃

* Water hardness: 0.034 ~ 0.103 g/

* Cable Specifications: GB 35 mm2 (three-phase four-wire);

* Intake of 10-50℃.
